Solar Inverter with PWM Controller GZL-NK12V50A
PRODUCT DESCRIPTION
| Product Name： | Solar Inverter with PWM Controller |
| Product Model： | GZL-NK12V50A |
| Battery Voltage： | 12VDC |
| Floating Charge Voltage ： | 13.5VDC |
| Qvercharge Protection ： | 15.0VDC |
| Maximum charge current ： | 10A/20A |
| Charging Current： | 50A |
| PV Range @ Operating Voltage ： | 15- 18VDC |
| Standby Power Consumption ： | 1W |
| Dimension.D*W*H(mm) ： | 240*327.6*110 |
| Net Weight(kgs) ) ： | 4.5kg |
| Note： | Note |
Features
Pure sine wave inverter Built-in PWM solar charge controller Selectable input voltage range for home use Selectable charging current based on applications Configurable AC/Solar input priority via LCD setting Compatible to mains voltage or generator power Auto restart while AC is recovering Overload and short circuit protection Smart battery charger design for optimized battery performance Parallel operation with up to 6units available for 5KVA

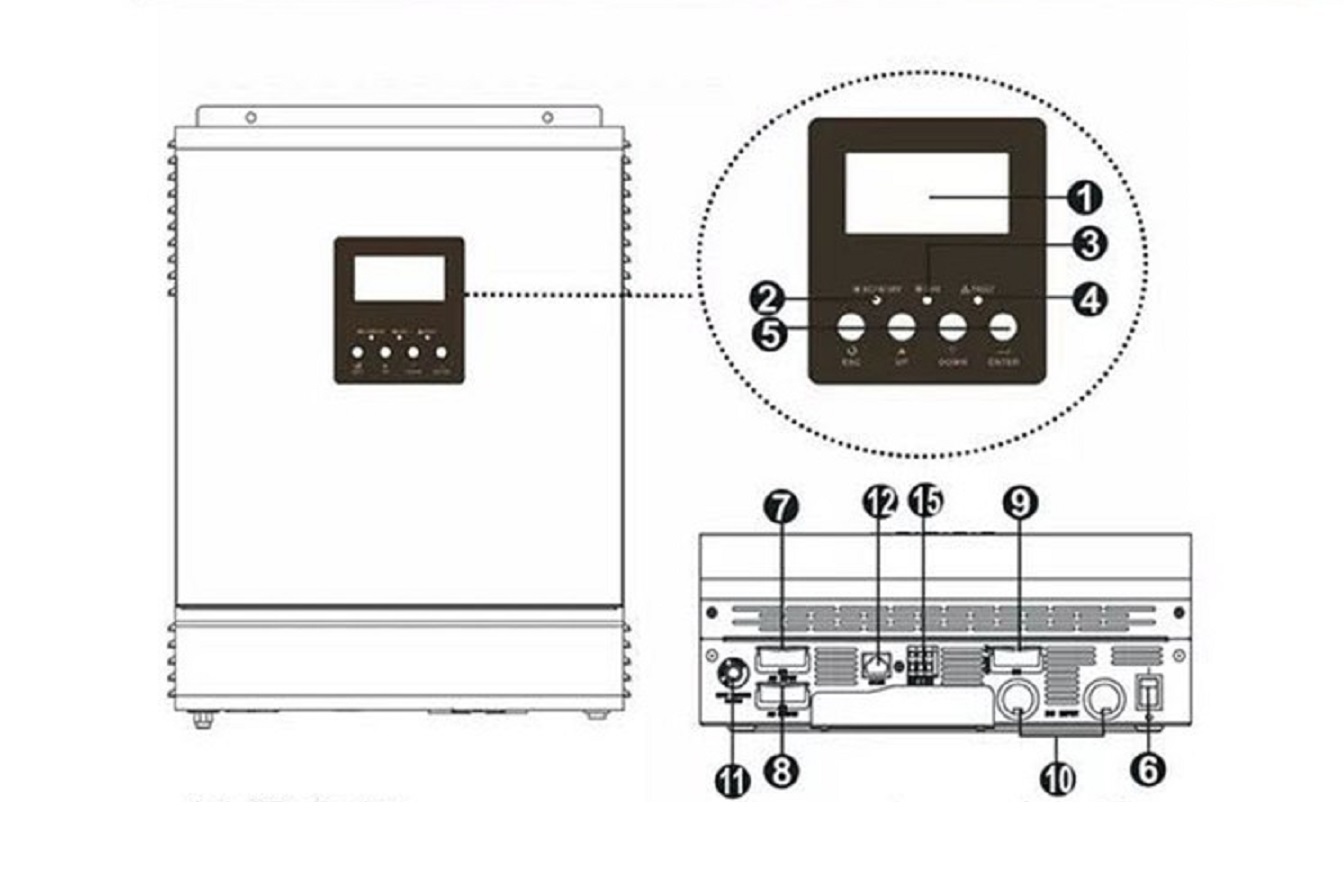

Product presentation
1.LCD display 2.Status indicator 3. Charging indicator 4.Fault indicator 5.Function buttons 6.Power on/off switch 7.AC input 8.AC output 9.PV input 10.Battery input 11. Circuit breaker 12.RS232communiction port 13. Parallel communication cable (only for parallel moddel)14. Current sharing cable (only for parallel model)15.Dry contact

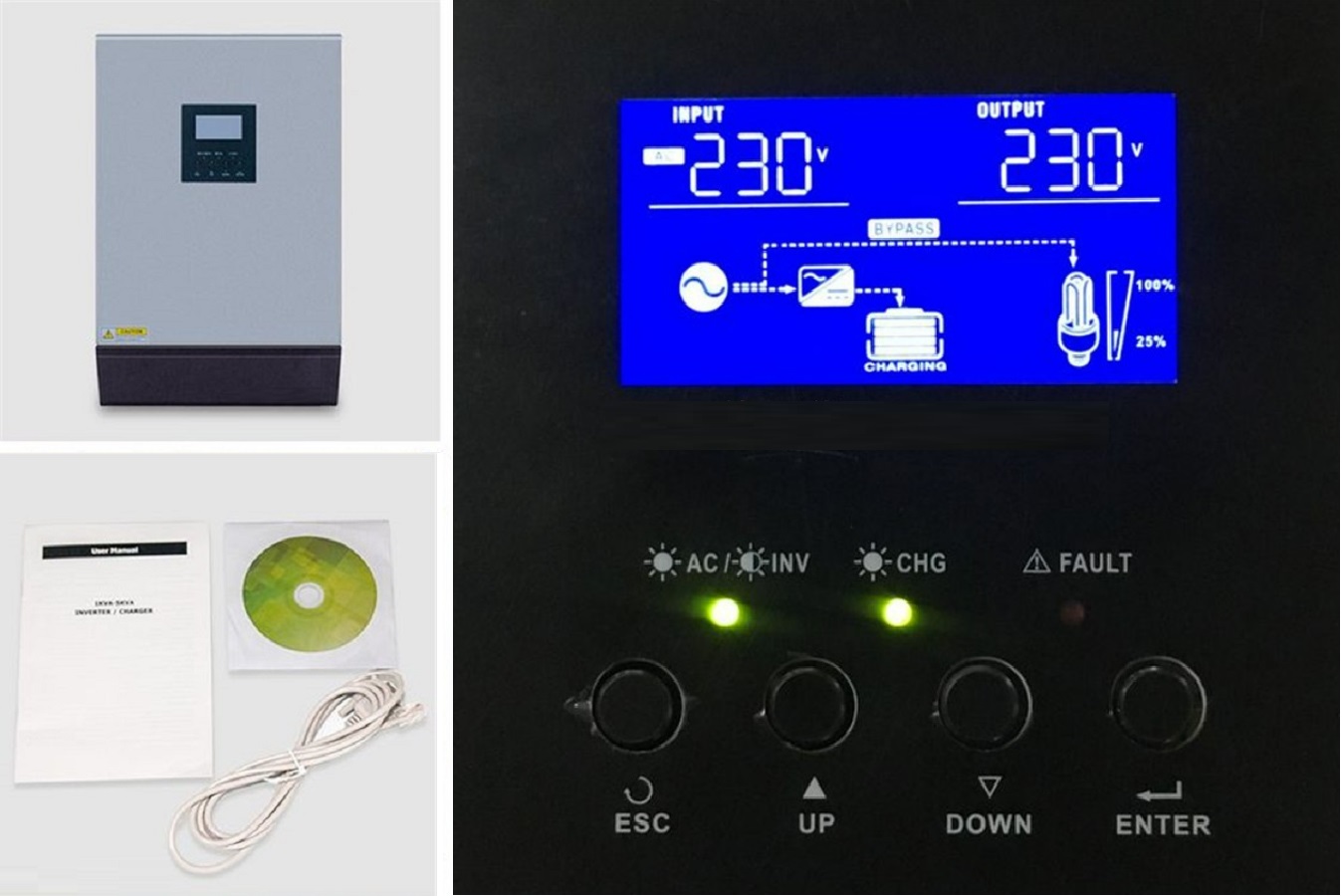

Package
1. Equipment *1 2. manual *1 3. communication cable *1 4. software CD *1
